Sony XAV‑9000ES Multimedia Receiver

Sony XAV‑9000ES Car Multimedia Receiver Specifications

Unit Size: Double DIN

Display Size: 6.75″ (17.1 cm) HD capacitive touchscreen

Resolution: 1280 × 720

Smartphone Integration: Wireless Apple CarPlay, Wired/Wireless Android Auto

USB Input: USB‑C (rear)

Bluetooth: Built‑in (BLE + A2DP)

Amplifier Output: 55 W × 4 (peak) / 20 W × 4 (continuous)

Pre‑outs: 3 channels (Front LR, Rear LR, Sub LR) at 5 V

Digital‑to‑Analog Converter: 24‑bit/192 kHz, ESS DAC

Audio Formats Supported: MP3, WMA, WAV, AAC, FLAC, ALAC, DSD via PCM conversion

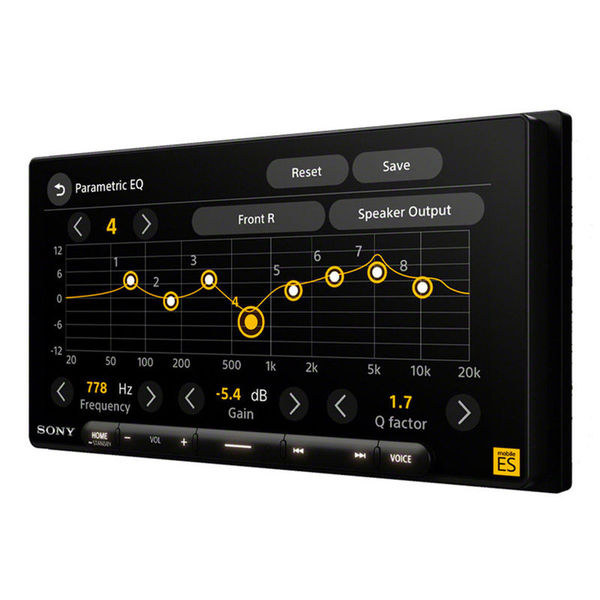

Equalizer: 14‑Band Graphic EQ + 8‑Band Parametric EQ per channel

Time Alignment: Yes (adjustable)

Tuner Features: FM/AM with RDS; FM Presets 18, AM Presets 12

Rear View Camera Inputs: 3 (Rear/Input 1/Input 2)

Connectivity:

• 4 × Pre‑amp outputs (Front LR, Rear LR, Sub)
• USB‑C charger up to 3 A
• Steering Wheel Control (adapter required)

Display Customization: Custom wallpapers, white key illumination

Mounting Compatibility: Fits standard double DIN dash openings
